SPECIFICATIONS

Work Temperature/Humidity: -20 °C to 55 °C (-4 °F to 131°F)

Type-C Power Bank: 5 VDC, 2 A Supports external power supply

Type: RIFLE

Storage Capacity: Built-in EMMC (64 GB)

Standby Mode: Yes

Response Waveband: 8 μm to 14 μm

Record Video: On-board video recording

Range Finding Function: No

Protection Level: IP67

Port: Type-C

Pixel Interval: 12 μm

Picture-in-Picture: Yes

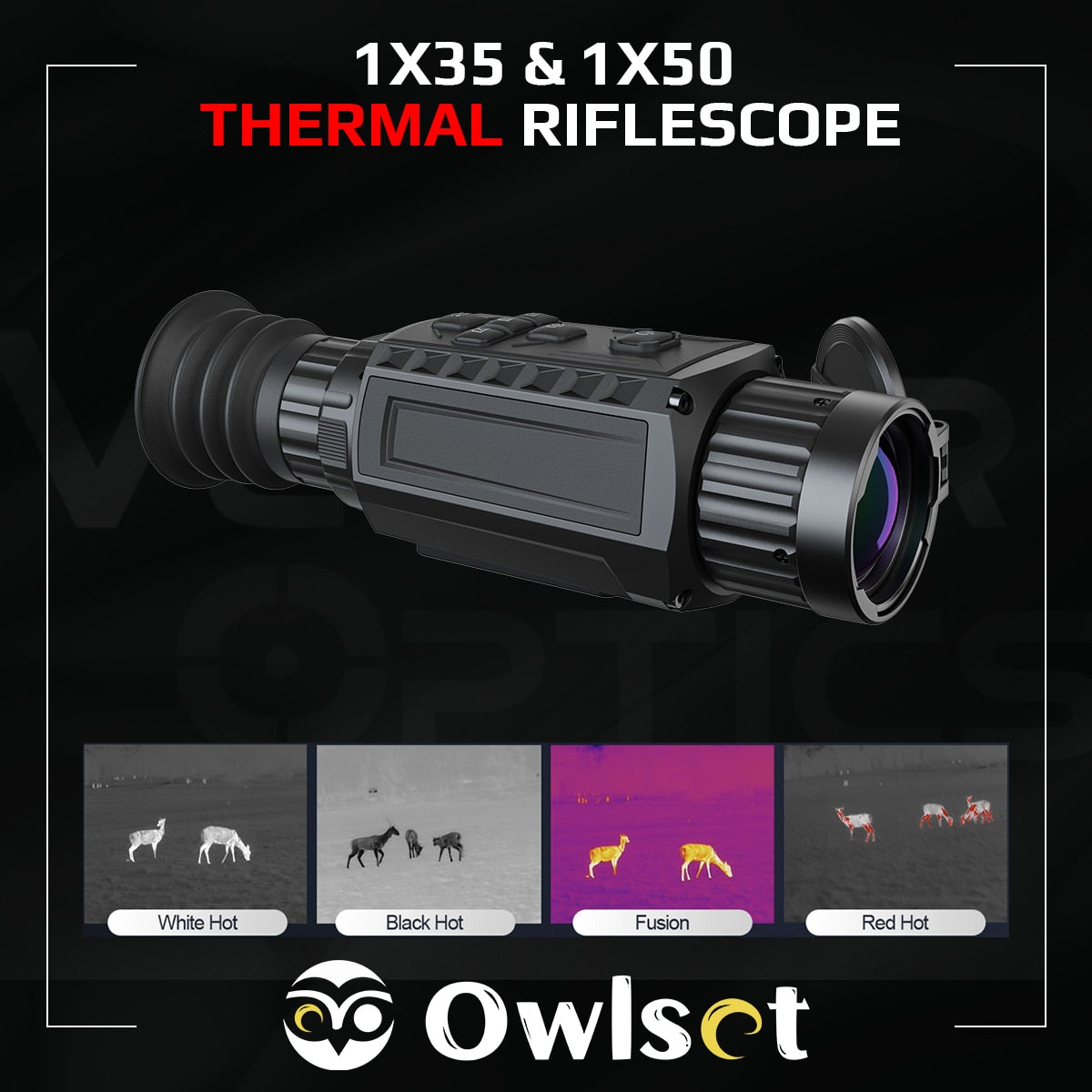

Palettes: Black hot, white hot, red hot, fusion

Overvoltage Protection: Yes

Origin: Mainland China

NETD: less than 35 mK (25 °C, F#=1.0)

Model Number: VEOT-AD01 VEOT-AD02

Magnification: 1x

Image Sensor: Uncooled Focal Plane Arrays

Hot Spot Tracking: Yes

Hot Spot: Yes

Homogeneity Correction: Auto, External Correction

Function: Lens

Frame Rate: 50 Hz

Eye Relief: 10mm

Exit Pupil: 22mm

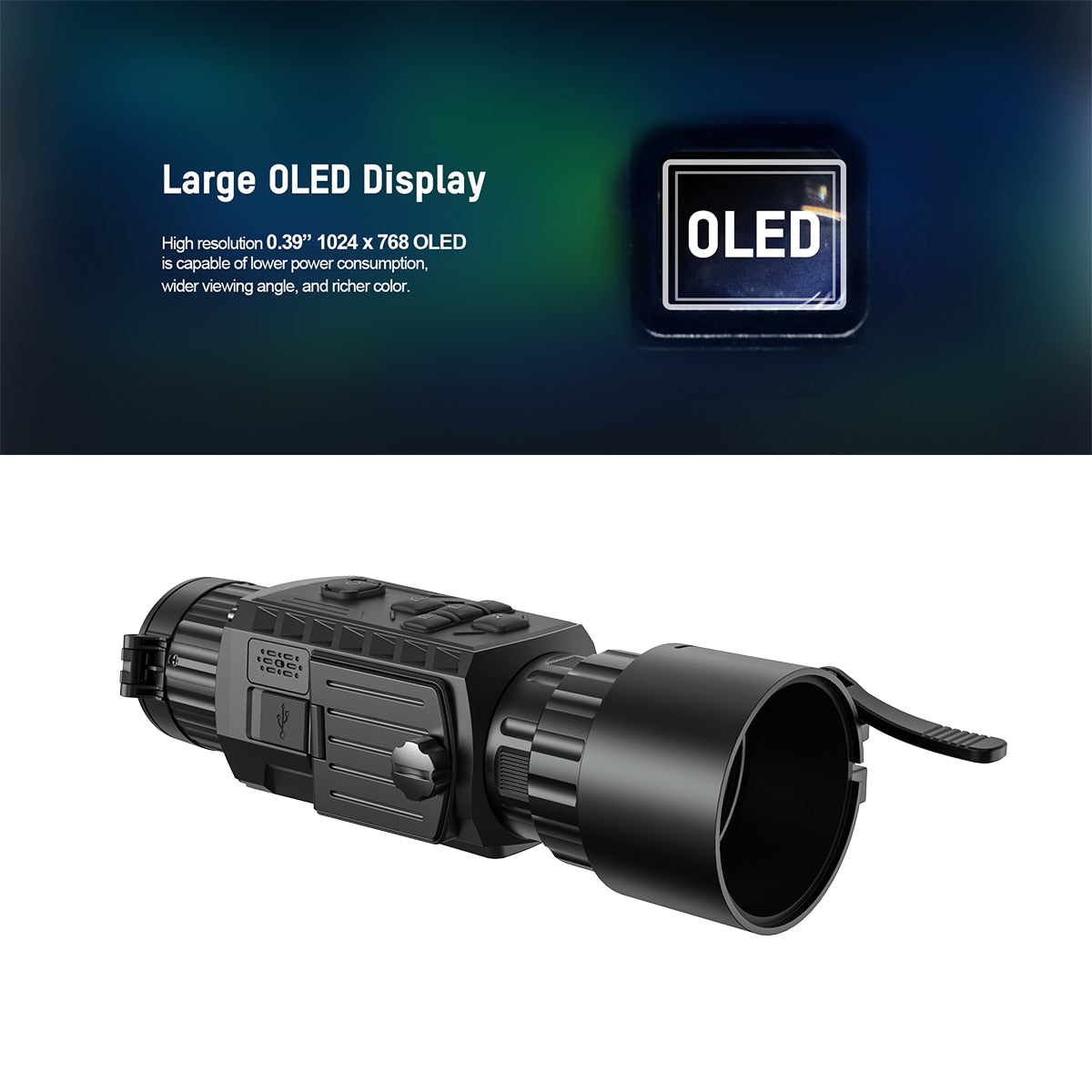

Display: 1024x768, 0.39 inch, OLED

Defect Point Correction: Yes

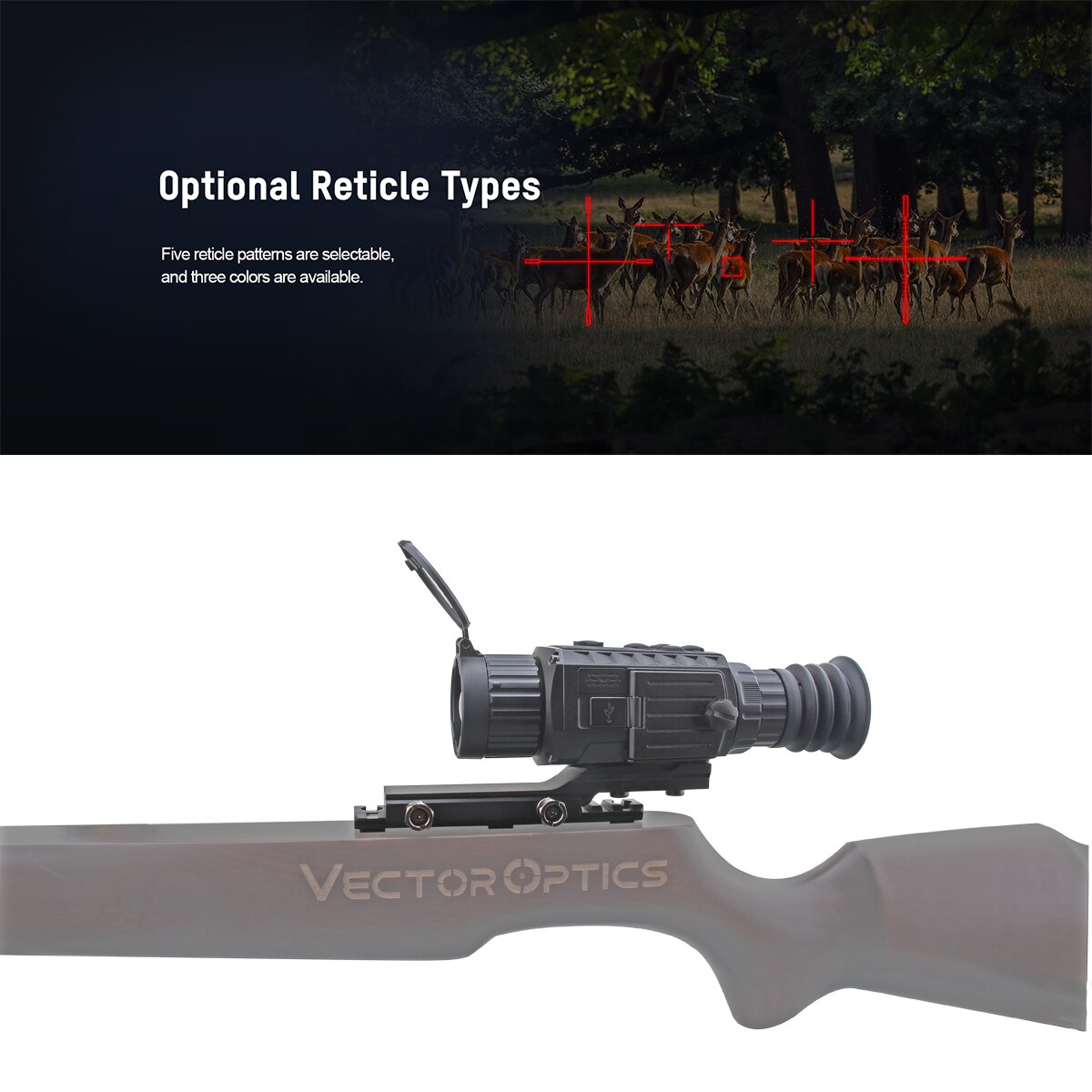

Cross-Line Reticle: Yes

Capture Snapshot: Yes

Brand Name: Vector Optics

Battery Type: CR123A, RCR123A

Battery Operating Time: 6.5 h (25 °C, with hotspot off)

Battery Capacity Display: Yes

Aperture: F1.0

Anti-reverse Battery Connection: Yes
